Detailed Description

1.Device Introduction

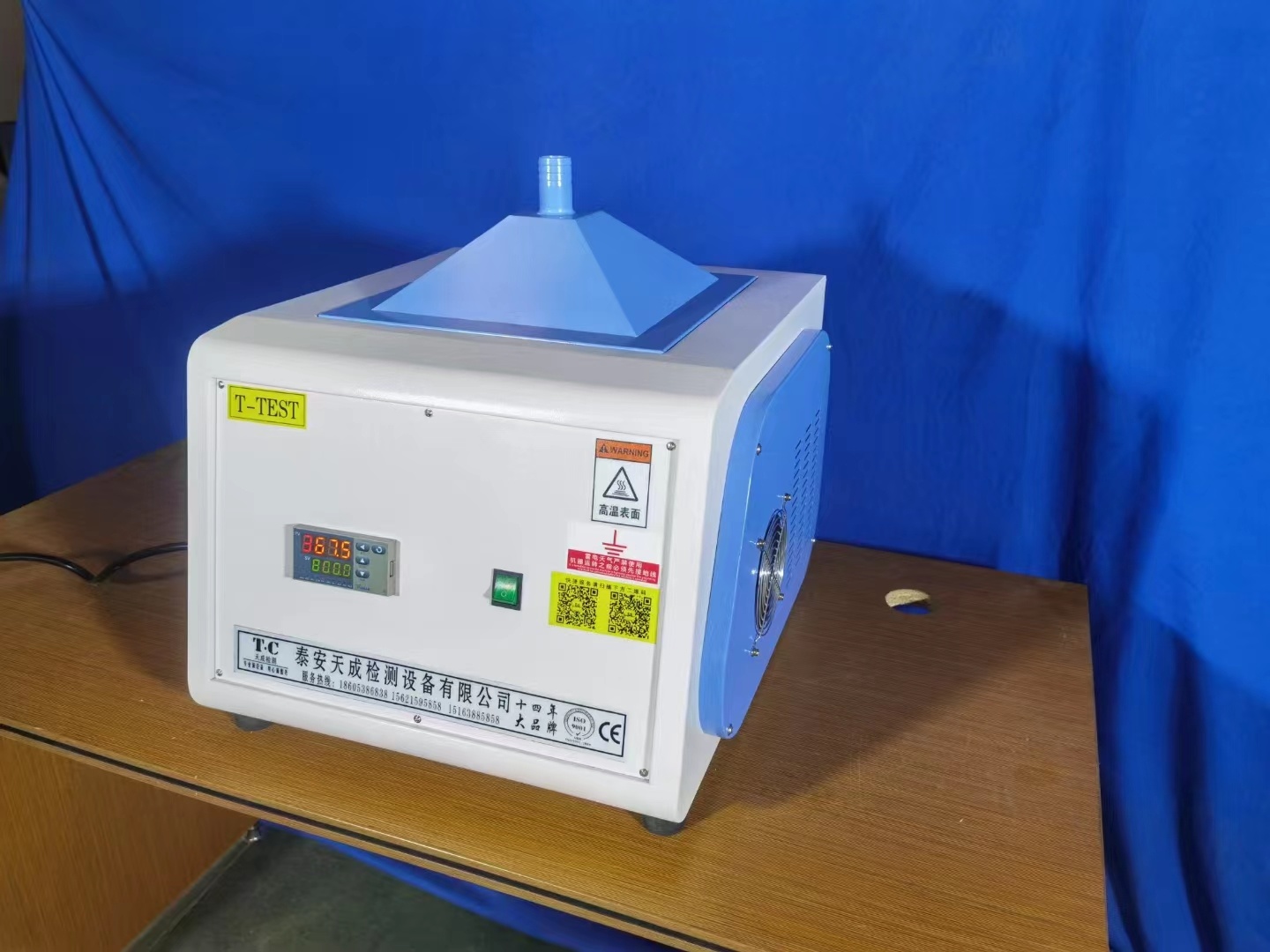

This device uses resistance wire heating, with a temperature control range from room temperature to 900degrees Celsius, specifically for testing the ash content of plastic pellets and plastic products.

This device has two models: TC-2600and TC-3600, where TC-2600 is an intelligent digital display, and TC-3600 is touch screen controlled, capable of calculating and printing.

2.Main Technical Parameters

Model	TC-3600
Rated Power (KW)	3.0KW
Rated Voltage (V)	220
Rated Temperature (℃)	900℃
Phase	1
Empty Furnace Heating Time (min)	≤60
Empty Furnace Power (KW)	≤2.5KW
Furnace Chamber Size (Round) (l×b) (mm)	200*160
Overall Dimensions (l×b×h) (mm)	500420420
Weight (㎏)	30

3.Structural Introduction

This machine has a fully sealed chamber structure, and waste gas can be uniformly discharged (the smoke exhaust device needs to be provided by the customer). The bottom of the device has a thermocouple, and above the thermocouple is the experimental chamber. The experimental chamber is surrounded by insulation layers. Above the experimental chamber is the chamber cover.

4.Installation and Use

1.The electric furnace does not require special installation; it can simply be placed on a flat surface or shelf. The controller should be kept away from vibrations, and its placement should not be too close to the electric furnace to prevent overheating that could cause electronic components to malfunction.

2.After turning on, first check if the temperature display is normal; the cold machine start should display room temperature.

3.This machine has a large power output, and grounding is required during use.

4.For specific operations, please refer to the instrument operation manual.
