densitometer

The densitometer is a leading instrument for measuring the density of plastic pellets. It can quickly and conveniently measure the density of various plastic pellets, equipped with professional measuring accessories and an integrated transparent water tank. It is portable, easy to operate, powerful, highly accurate, and has good repeatability!

Category:

Product Center

Inquiry

Keywords:

Product Center

Detailed Description

Product Introduction:

The density meter is a leading instrument for measuring the density of plastic pellets. It can quickly and conveniently measure the density of various plastic pellets, equipped with professional measuring accessories and an integrated transparent water tank. It is portable, easy to operate, powerful, highly accurate, and has good repeatability!

Applicable Scope:

Widely used in industries such as PVC, plastics, wires and cables, hard alloys, PVC boards, PE pellets, new materials, hard alloys, research laboratories, etc.

Technical Parameters:

1. Density Resolution: 0.001 g/cm3

2. Maximum Weight: 300g (optional 600g)

3. Minimum Weight: 0.005 g/0.01 g

Features:

1. Direct reading of the density value and volume of solids

2. Density greater than one and less than one can be quickly measured for both block and granular forms.

3. Temperature compensation setting and solution compensation setting for more user-friendly operation, better meeting on-site operational needs.

4. Equipped with RS-232C computer interface, easily connects to PC and printer.

5. Designed with a large water tank [D100×W70×H25mm (length, width, height)], capable of measuring large block objects.

6. When using corrosive liquids as a medium, a corrosion-resistant water tank can be purchased.

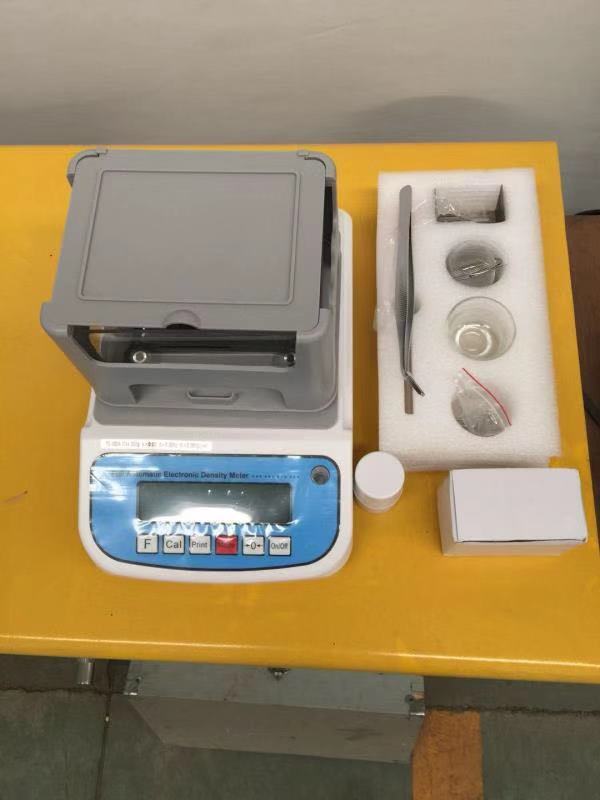

Standard Accessories:

① Main unit, ② Water tank, ③ Measuring platform, ④ Tweezers, ⑤ Thermometer, ⑥ 100G weight, ⑦ Wind and dust cover, ⑧ Set of accessories for measuring pellets, ⑨ Set of accessories for measuring buoyancy, ⑩ One power transformer.

Testing Steps:

Testing steps for blocks and sheets
1. Place the sample on the measuring platform, weigh it, and remember the weight. 2. Place the sample in water, weigh it, and remember the weight, then read the result immediately.

Note: When testing density less than one, use professional accessories for anti-floating.

Steps for measuring pellet density

1. First, place the beaker on the measuring platform and put a tennis ball in the water tank; then press the zero key to remove the weight.

2. Pour the pellets into the beaker to measure the weight in air, record W1, then pour the pellets into the water with the tennis ball (return the beaker to its original place) to measure the weight in water W2... directly read the density and volume.

Note: It is best to use alcohol as a medium for testing pellets.
