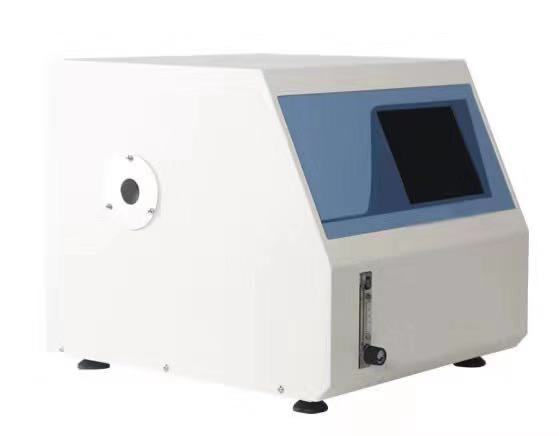

Carbon black content measuring instrument

Product Introduction:

     The carbon black content is an important technical indicator in product performance, and the amount affects the hardness, elasticity, wear resistance, and insulation properties of the material.

²This instrument is suitable for determining the carbon black content in polyethylene, polypropylene, and polybutene plastics.

²The carbon black test is obtained through weight analysis after the sample is decomposed at high temperature under nitrogen protection.

²This instrument is easy to use, simple to operate, reliable in work, accurate in measurement, and has automatic temperature control.

Standards:

²ASTM D1603-2012General test methods for insulation and sheath materials of cables and optical cables and related testing standards.

²GB/T2951.41-2008General test methods for insulation and sheath materials of cables and optical cables.

²GB/T3515-2005Determination of carbon black content in rubber -Pyrolysis method

²GB-T13021-1991Instrument for determining carbon black content in polyethylene pipes and fittings (thermogravimetric method)

Technical Parameters:

1.Display method: 8inch capacitive touch screen

2.Furnace chamber size: Φ31×300±5mm

3.Heating element: high-temperature alloy wire

4.Heating zone length: 200mm

5.Constant temperature zone length: 100mm

6.Working temperature: room temperature ~1200℃

7.Temperature control method: intelligent programmable control

8.Working power supply: AC220V/50HZ/60HZ

9.Sensor sensitivity: 0.01℃

10.Gas path control: two paths

Technical Features:

1.The instrument has an aesthetically pleasing structure and is easy to operate;

2.The heating furnace body and control system are integrated for convenient instrument management by users.

3.High degree of automation, just set the temperature value and heating time, and the instrument will automatically heat to the set value;

4.High temperature control accuracy, large temperature range, and high uniformity of furnace chamber temperature;

5.88-inch LCD touch screen display, extremely user-friendly interface, one-click operation to start.

6.It has excellent constant temperature function, and the constant temperature time can be set with high constant temperature accuracy;

7.The instrument can set any group of different heating time segments, with different heating temperatures, heating rates, and constant temperature times;

8.Comprehensive parameter display, showing the number of set groups, theoretical temperature, actual temperature, heating time (or constant temperature time);

9.During the operation of the instrument, the set parameters and heating or constant temperature time can be viewed.
