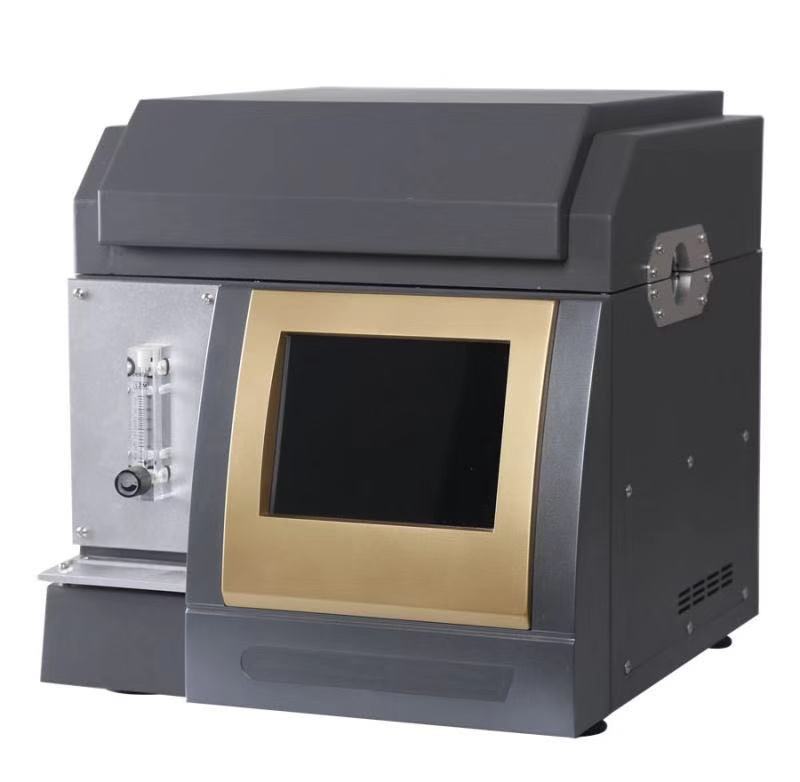

Carbon black content measuring instrument
Carbon black content measuring instrument

Carbon black content measuring instrument

The carbon black content is an important technical indicator in product performance, and the amount of content has a certain impact on the hardness, elasticity, wear resistance, and insulation properties of the material.

Category:

Product Center

Inquiry
Contact Us

Keywords:

Product Center

Detailed Description

Product Introduction:

  The carbon black content is an important technical indicator in product performance, and the amount affects the hardness, elasticity, wear resistance, and insulation of the material.

²This instrument is suitable for determining the carbon black content in polyethylene, polypropylene, and polybutene plastics.

²The testing of carbon black is obtained through weight analysis after the sample is decomposed at high temperature under nitrogen protection.

²This instrument has advantages such as ease of use, simple operation, reliable work, accurate measurement, and automatic temperature control.

Standards:

²ASTM D1603-2012General test methods for insulation and sheath materials of cables and optical cables and related testing standards.

²GB/T2951.41-2008General test methods for insulation and sheath materials of cables and optical cables.

²GB/T3515-2005Determination of carbon content in rubber by pyrolysis method.

²GB-T13021-1991Instrument for determining carbon black content in polyethylene pipes and fittings (thermogravimetric method).

Technical Parameters:

1.Furnace door structure: Automatic rising opening.

2.Display method: 8inch capacitive touch screen.

3.Furnace tube size: Φ40×610

4.Heating element: High-temperature alloy wire.

5.Heating zone length: 200mm.

6.Constant temperature zone length: 100mm.

7.Working temperature: Room temperature ~ 1200℃

8.Temperature control method: Intelligent programmable control.

9.Working power supply: AC220V/50HZ/60HZ.

10.Sensor sensitivity: 0.01.℃

11.Gas path control: Two paths.

Technical Features:

1.The furnace door automatically lifts, accelerating the cooling speed, avoiding burns from manual operation, and facilitating the placement and positioning of samples.

2.Can test 4 samples simultaneously.(Optional crucible).

3.Users can replace the float flowmeter with the corresponding flow range according to their needs.

4.88-inch LCD touch screen display, extremely user-friendly interface, one-click operation to start.

5.You can fill in the corresponding data on the screen to calculate the carbon black content percentage.

6.During the operation of the instrument, you can view the set parameters and the time for heating or maintaining temperature.

7.Touch screen controls gas switching.
