Universal Testing Machine - Conventional Type

The microcomputer-controlled universal testing machine is used to determine the tensile strength, ring stiffness, ring flexibility, and flatness of thermoplastic pipes, composite pipes, and other materials. It can be used by research institutions, colleges and universities, and industrial enterprises for mechanical performance analysis and production quality inspection of various materials.

Category:

Product Center

Inquiry

Keywords:

Product Center

Detailed Description

1.Principle

The microcomputer-controlled universal testing machine is designed and manufactured according to the requirements of GB/T1040, GB/T9647-2015, GB/T1041-2008, GB/T8804, GB/T19806-2005, GB/T328-2007, GB/T9341-2008, GB/T13022-91, JTT/529-2016, ISO9969-2007, IS0527-1993, and other standards. This machine adopts closed-loop control technology to achieve stability and reliability in equipment operation.

2.Equipment Purpose

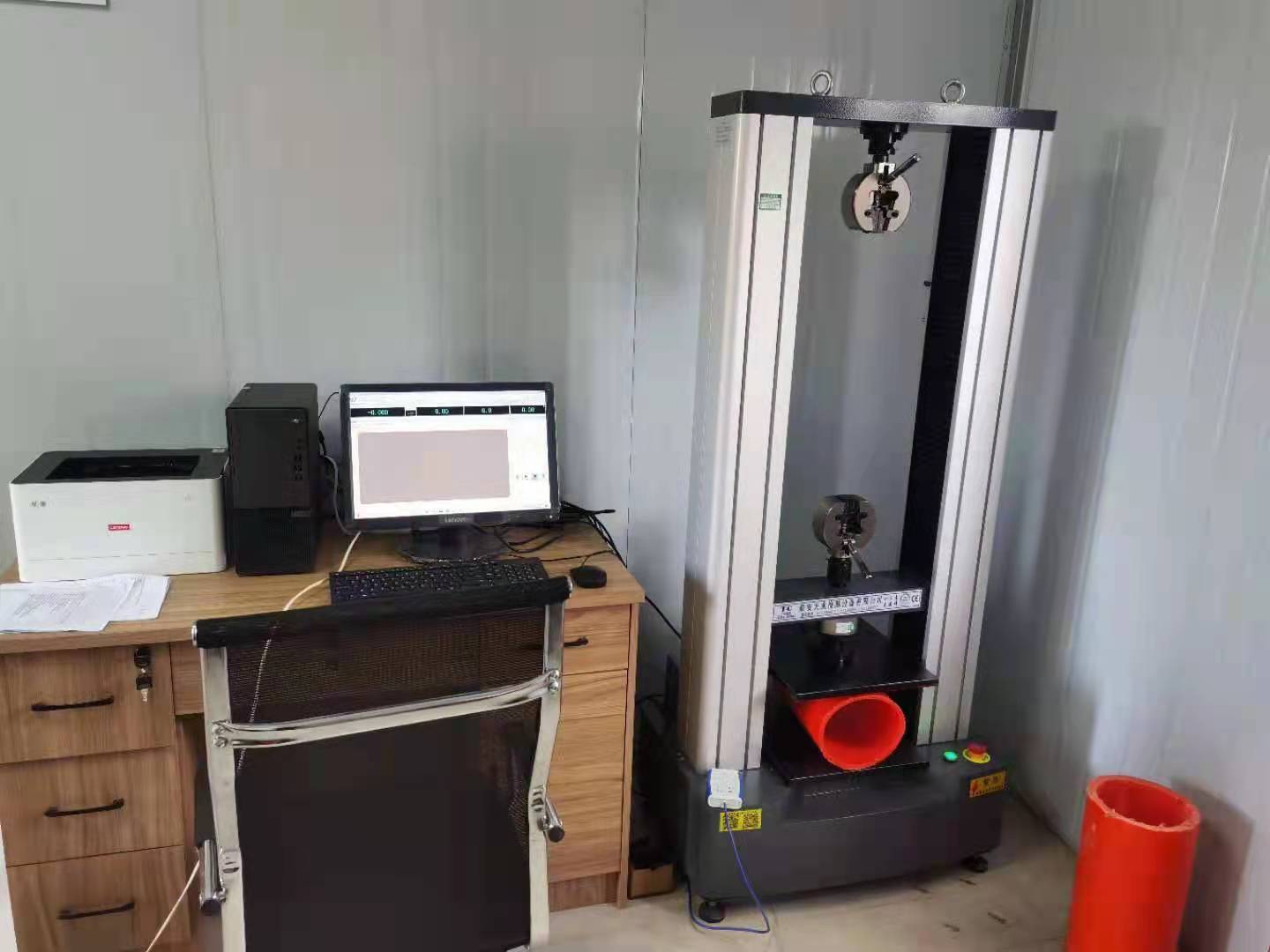

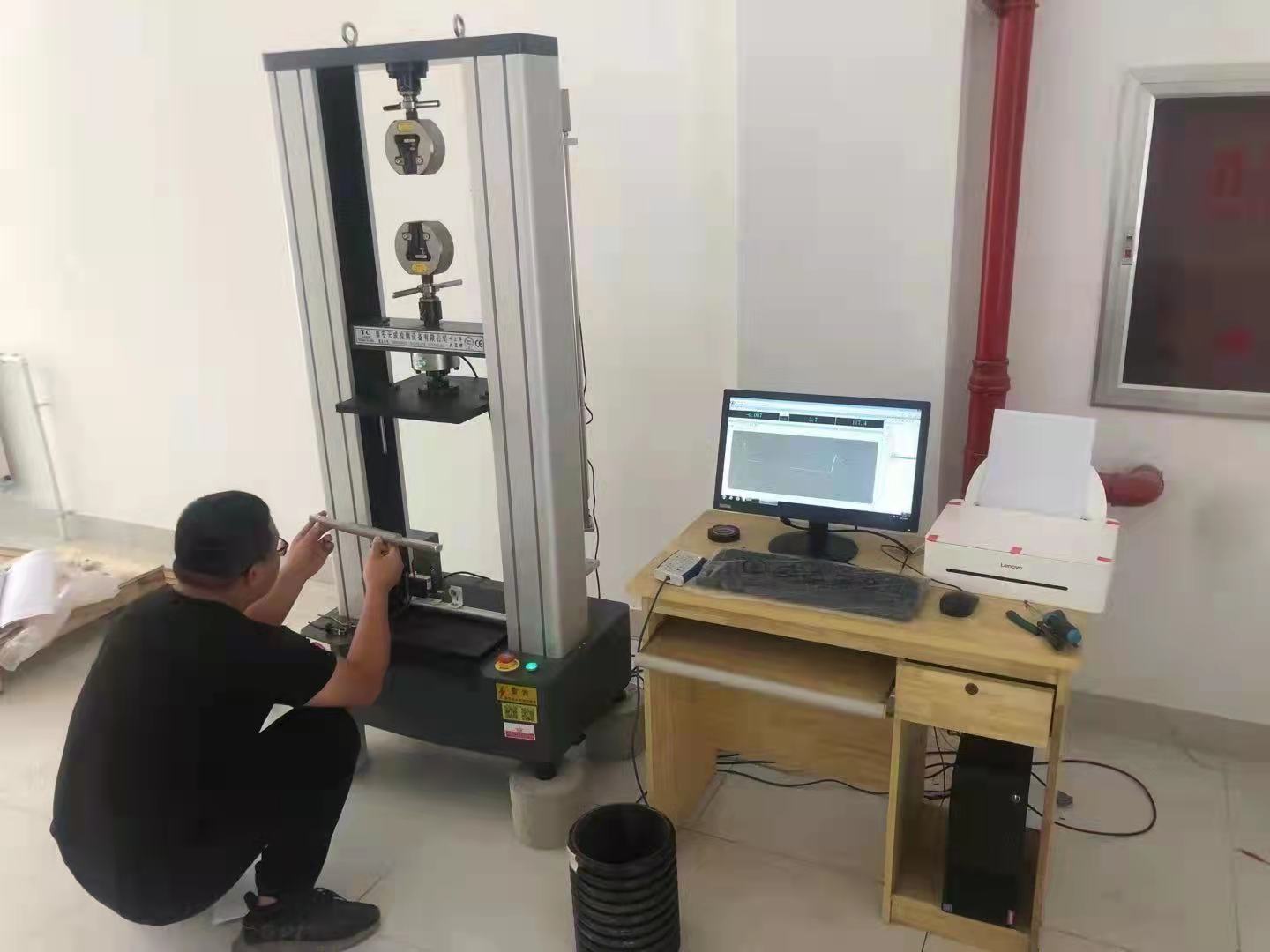

The microcomputer-controlled universal testing machineis used to determine the tensile, ring stiffness, ring flexibility, and flatness of thermoplastic pipes, composite pipes, and other materials. It can be used for mechanical performance analysis and production quality inspection of various materials in research departments, colleges and universities, and industrial enterprises.

3.Technical Indicators

● Test force: up to 50KN

● Measurement range: 0.4% to 100% of the maximum test force—100%
● Testing machine accuracy level: Level 1
● Test force accuracy: better than ±1% of the indicated value
● Displacement measurement: resolution of 0.001mm
● Deformation accuracy: better than ±1%
● Speed range: 0.1-300mm/min
● Test space: 900--3500mmOptional
● Weight: 350-900KG
● Working environment: room temperature ~ 45℃, humidity 20%～80%

● 可测试项目：拉伸（拉伸强度，断裂伸长率）环刚度环柔度扁平

● 设备高度1800-4200mm

四.相关标准

GBT1040.1-2006《塑料拉伸性能的测定第1部分：总则》GBT1040.2-2006《塑料拉伸性能的测定第2部分：模塑和挤塑塑料的试验条件》

GBT8804.1.2.3-2003《热塑性塑料管材拉伸性能测定》

GBT9647-2003《热塑性塑料管材环刚度的测定》

JTT/529-2016混凝土桥梁用塑料波纹管

GB/T1041-2008《塑料压缩性能测试方法》

GB/T19806-2005《塑料管材管件挤压剥离试验》

GB/T13022-1991《塑料薄膜拉伸性能》

GB/T15788-2005《宽条拉伸试验》

GB/T2791-1995《剥离强度剥离试验方法》
