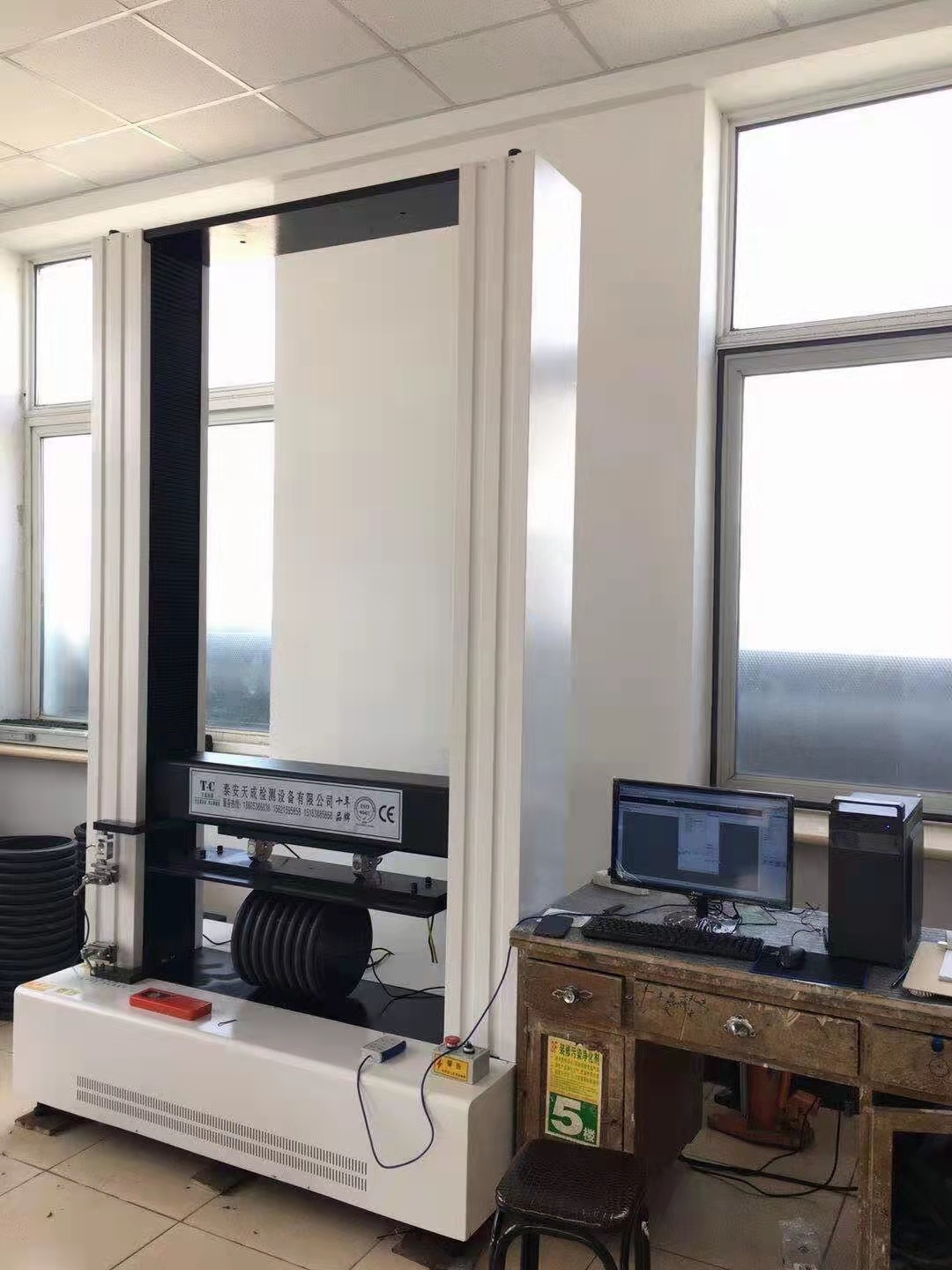

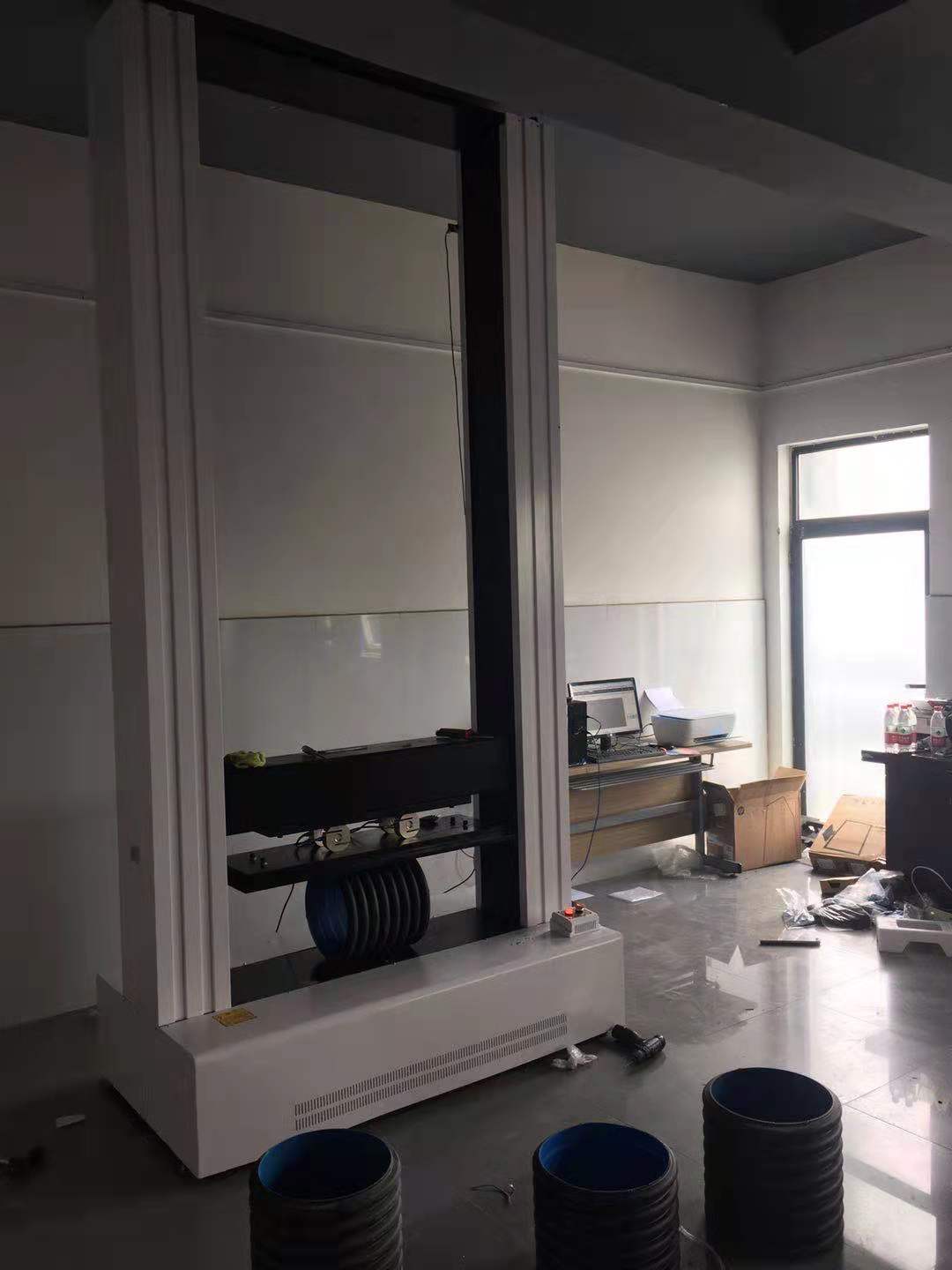

Universal Testing Machine - Heavy Duty

The microcomputer-controlled universal testing machine is used to determine the tensile strength, ring stiffness, ring flexibility, and flatness of thermoplastic pipes, composite pipes, and other materials. It can be used by research institutions, colleges and universities, and industrial enterprises for mechanical performance analysis and production quality inspection of various materials.

Category:

Product Center

Inquiry

Keywords:

Product Center

Detailed Description

1.Principle

The microcomputer-controlled universal testing machine is designed and manufactured according to the requirements of GB/T1040, GB/T9647-2015, GB/T1041-2008, GB/T8804, GB/T19806-2005, GB/T328-2007, GB/T9341-2008, GB/T13022-91, JTT/529-2016, ISO9969-2007, IS0527-1993, and other standards. This machine adopts closed-loop control technology to achieve stability and reliability in equipment operation.

2.Equipment Purpose

The microcomputer-controlled universal testing machineis used to determine the tensile, ring stiffness, ring flexibility, and flatness of thermoplastic pipes, composite pipes, and other materials. It can be used by research departments, colleges and universities, and industrial enterprises for mechanical performance analysis and production quality inspection of various materials.

3.Technical Indicators

● Test force: 50KN

● Measurement range: 0.4% of maximum test force—100%.
● Testing machine accuracy level: Class 1
● Test force accuracy: better than ±1% of the indicated value
● Displacement measurement: resolution of 0.001mm
● Deformation accuracy: better than ±1%.
● Speed range: 0.1-300mm/min
● Test space: 900--3500mmOptional
● Weight: 350-900KG
● Working environment: room temperature ~ 45℃, humidity 20%.~80%.

● Testable items: tensile (tensile strength, elongation at break), ring stiffness, ring flexibility, flatness.

● Equipment height 1800-4200mm

4.Related Standards

GBT1040.1-2006"Determination of Plastic Tensile Properties Part 1: General Principles" GBT1040.2-2006"Determination of Plastic Tensile Properties Part 2: Test Conditions for Molding and Extruded Plastics""Determination of Tensile Properties of Thermoplastic Plastic Pipes"

GBT8804.1.2.3-2003"Determination of Ring Stiffness of Thermoplastic Plastic Pipes"

GBT9647-2003Plastic corrugated pipes for concrete bridges

JTT/529-2016"Testing Methods for Plastic Compression Properties"

GB/T1041-2008"Extrusion Peel Test for Plastic Pipes and Fittings"

GB/T19806-2005"Tensile Properties of Plastic Films"

GB/T13022-1991"Wide Strip Tensile Test"

GB/T15788-2005"Peel Strength Peel Test Method"

GB/T2791-1995"Plastic Bending Test Method"

GB/T9341-2008《塑料弯曲试验方法》
