Hydrostatic testing machine

1. Purpose

The TGY-10 type pipe static hydraulic testing machine is manufactured according to the requirements of GB/T6111—2003 "Test Method for Internal Pressure Resistance of Thermoplastic Plastic Pipes for Fluid Transport" standard. It is used to determine the pressure resistance failure test of thermoplastic pipes and composite pipes (such as PP-R, PP-B, PP-A, PE, PE-X, PVC, PVC-U, PVC-C, and aluminum-plastic composite pipes) under long-term constant internal pressure and constant temperature. It is an essential testing device for plastic pipe manufacturers and testing institutions.

This testing machine also meets the following national standards

GB/T18742.1—2002 "Polypropylene for Hot and Cold Water Part 2: Pipes"

GB/T18742.2—2002 "Polypropylene for Hot and Cold Water Part 2: Pipes"

GB/T18742.3—2002 "Polypropylene for Hot and Cold Water Part 3: Fittings"

GB/T13663—2000 "Polyethylene PE Pipes for Water Supply"

GB/T15558.1—2003 "Polyethylene PE Pipes for Gas Underground"

GB/T15558.2—1995 "Polyethylene PE Fittings for Gas Underground"

GB/T18992.1—2003 "Cross-linked Polyethylene (PE-X) Pipeline System for Hot and Cold Water

Part 1: General"

GB/T18992.2—2003 "Cross-linked Polyethylene (PE-X) Pipeline System for Hot and Cold Water

Part 2: Pipes"

GB/T10002.1—1996 "Rigid Polyvinyl Chloride (PVC-U) Pipes for Water Supply"

GB/T10002.2—1996 "Rigid Polyvinyl Chloride (PVC-U) Fittings for Water Supply"

GB/T18993.1—2003 "Chlorinated Polyvinyl Chloride (PVC-C) Pipeline System for Hot and Cold Water

Part 1: General"

GB/T18993.2—2003 "Chlorinated Polyvinyl Chloride (PVC-C) Pipeline System for Hot and Cold Water

Part 2: Pipes"

GB/T18992.1—2003 "Chlorinated Polyvinyl Chloride (PVC-C) Pipeline System for Hot and Cold Water

Part 3: Fittings"

GB/T18997.1—2003 "Aluminum-Plastic Composite Pressure Pipe Part 1: Aluminum Pipe Lap Welded Aluminum-Plastic Pipe"

GB/T18997.2—2003 "Aluminum-Plastic Composite Pressure Pipe Part 2: Aluminum Pipe Butt Welded Aluminum-Plastic Pipe"

2. Features

This machine adopts advanced technology structure from Northern Europe, using a gas-free hydraulic (medium is water) system for pressurization, which is safe and reliable. Key components use imported high-precision advanced parts and high-end domestic products. The high-pressure pump head uses the American 2525 type three-piston 25MPa high-pressure pump head. The electrical control system uses the original Delta PLC central cluster module (micro programmable controller) for control. The operation part uses microcomputer control, allowing the operator to set various instructions through the display. After passing through the PLC central cluster controller, the PLC controller continuously transmits control information to each execution component, while each execution component continuously feeds back the test results to the PLC controller for display on the monitor. This achieves the mutual transmission of instructions and execution. After setting the test parameters on the display, it can display the test pressure, test time, and test pressure and time curves in real-time; the test temperature is displayed in real-time on the "temperature controller". The PLC central cluster control makes it an intelligent unattended testing instrument. The pressure sensor's pressure sampling frequency is 0.3 seconds, improving the overall signal response speed, control accuracy, and long-term operational reliability. It can also achieve independent control of test pressure and test time. This machine has a power failure protection function. When a power failure or other adverse phenomenon occurs, the test data automatically restores after power is restored, retaining the original test data. The microcomputer-controlled static hydraulic testing machine has strong anti-interference capability and is a domestic innovation, with a high performance-to-price ratio.

3. Main Technical Parameters

1. 3-way independent control of test pressure and test time;

2. Pressurization range: 0—10MPa (arbitrarily set);

3. High-pressure plunger pump

(1) Pressure: 165-238bar (2) Flow rate: 8.3-11L/min

(3) Speed: 750rpm/min (4) Three-piston diameter: 12mm
4. Pressure control accuracy: +2% of the upper limit of the test pressure value, -1% of the lower limit of the test pressure value;

5. Pressure value resolution: 0.01MPa;

6. Pressure transmitter: test pressure sampling frequency 0.3 seconds;

7. Temperature control range: room temperature—95℃ (arbitrarily set);

8. Temperature control accuracy: ±1℃;

9. Timing range: 0—9999h;

10. Timing accuracy: 1%;

11. Power: 5kW;

12. Power supply: 380VAC/220VAC (three-phase five-wire power supply);

13. Dimensions:

Main machine: Length × Width × Height 600mm × 650mm × 1650mm

4. Structure and Working Principle

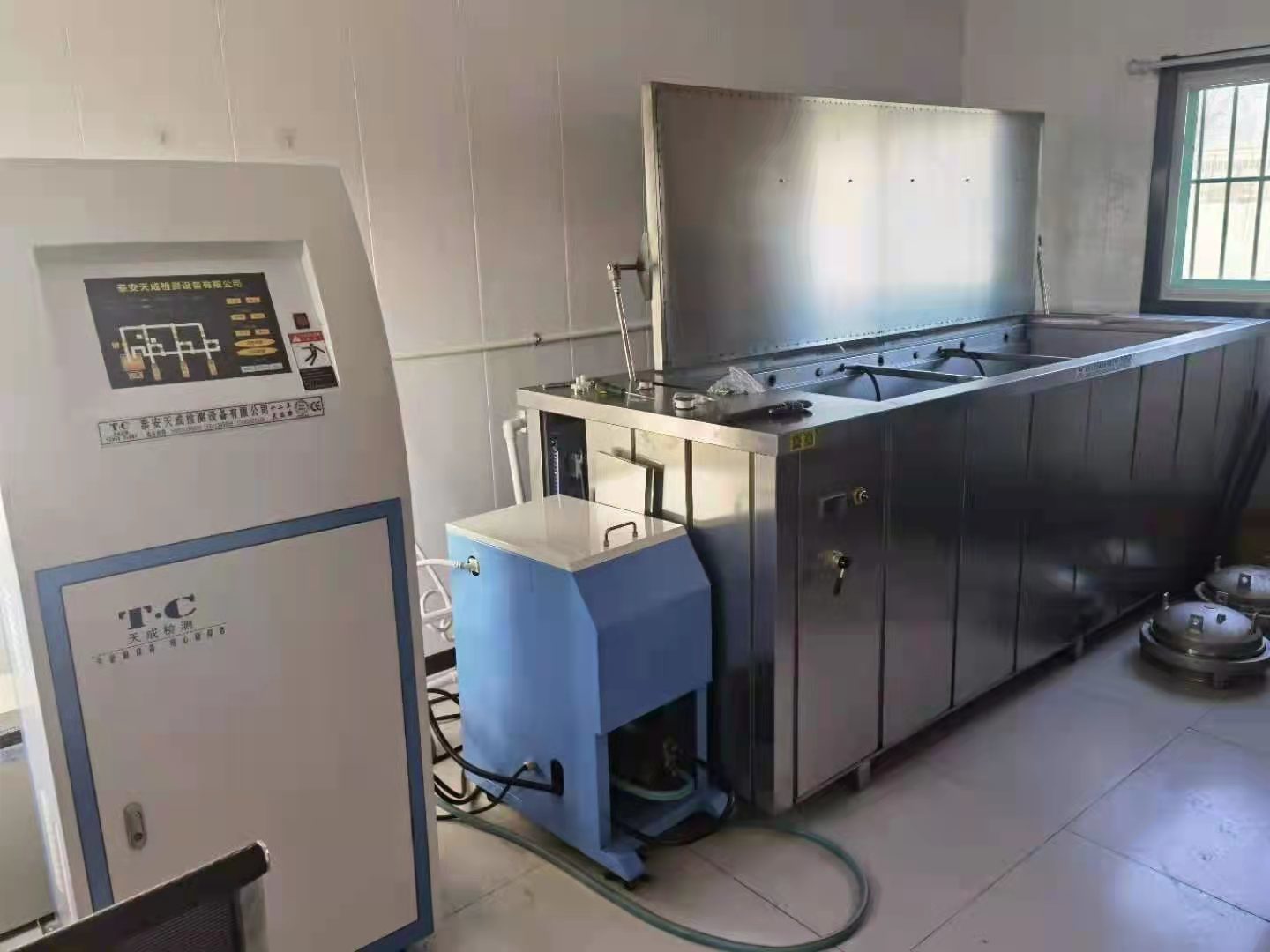

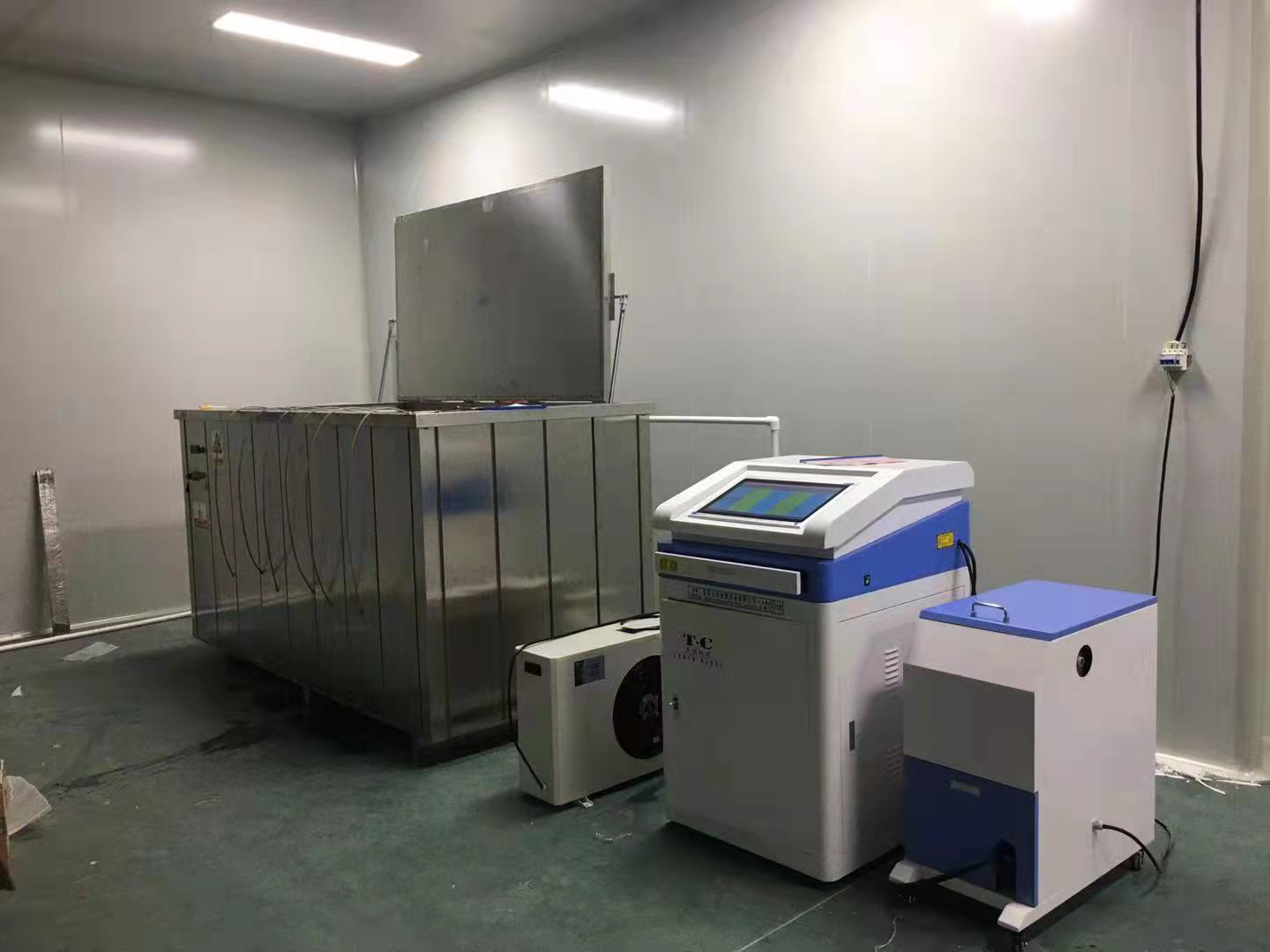

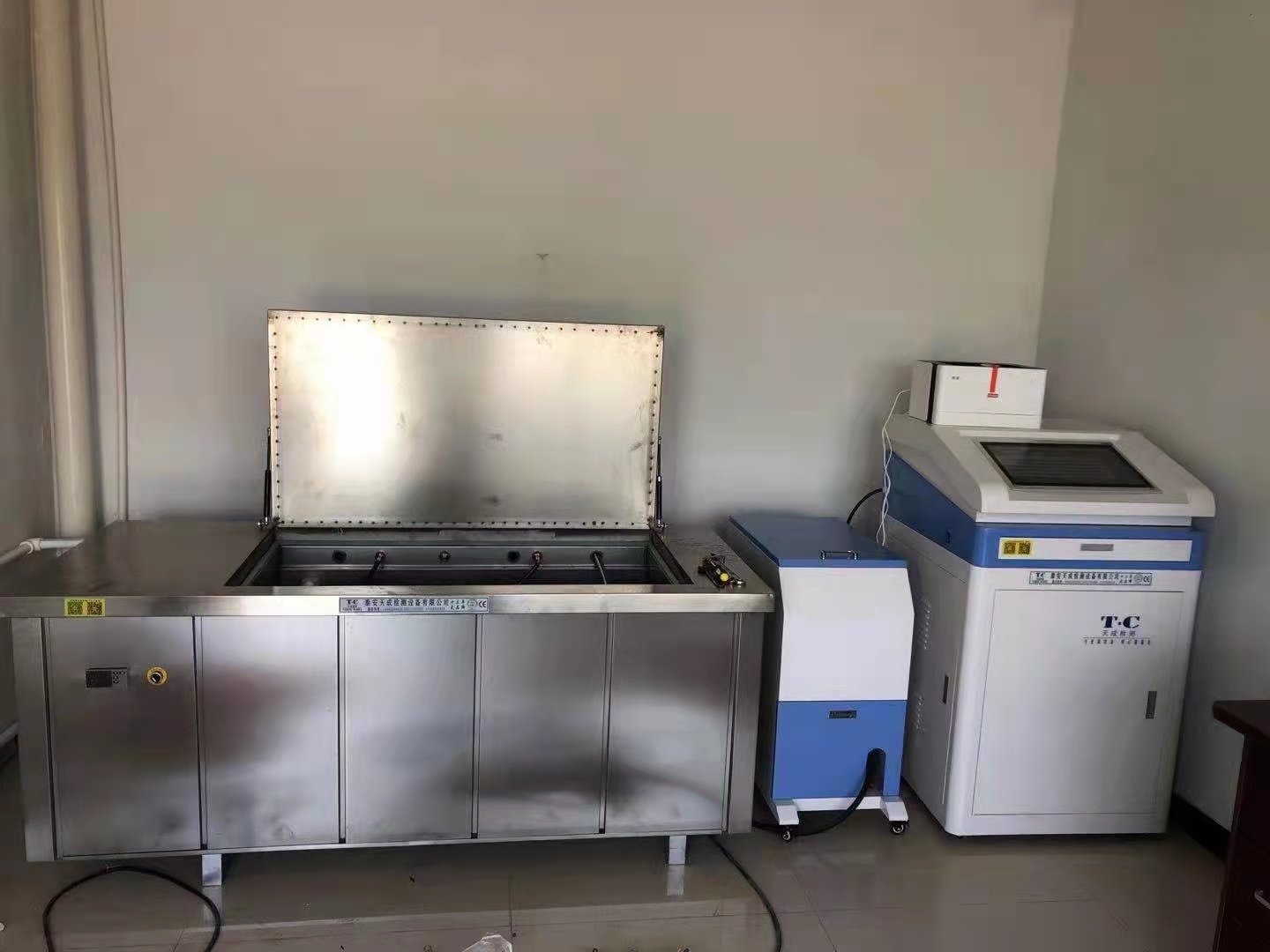

This machine mainly consists of four parts: pressure control system (high-pressure pump, main machine), medium constant temperature box, temperature control system, and fixture.

The high-pressure pump generates high-pressure liquid, which is measured by the pressure control system main machine and then delivered to the sample in the medium constant temperature box through a high-pressure hose for long-term static hydraulic testing of the pipe.

高压泵产生高压液体，经过压力控制系统主机的测量后，经高压软管输送给介质恒温箱内的试样中，进行管材的长时间静液压试验。
