Tensile testing machine

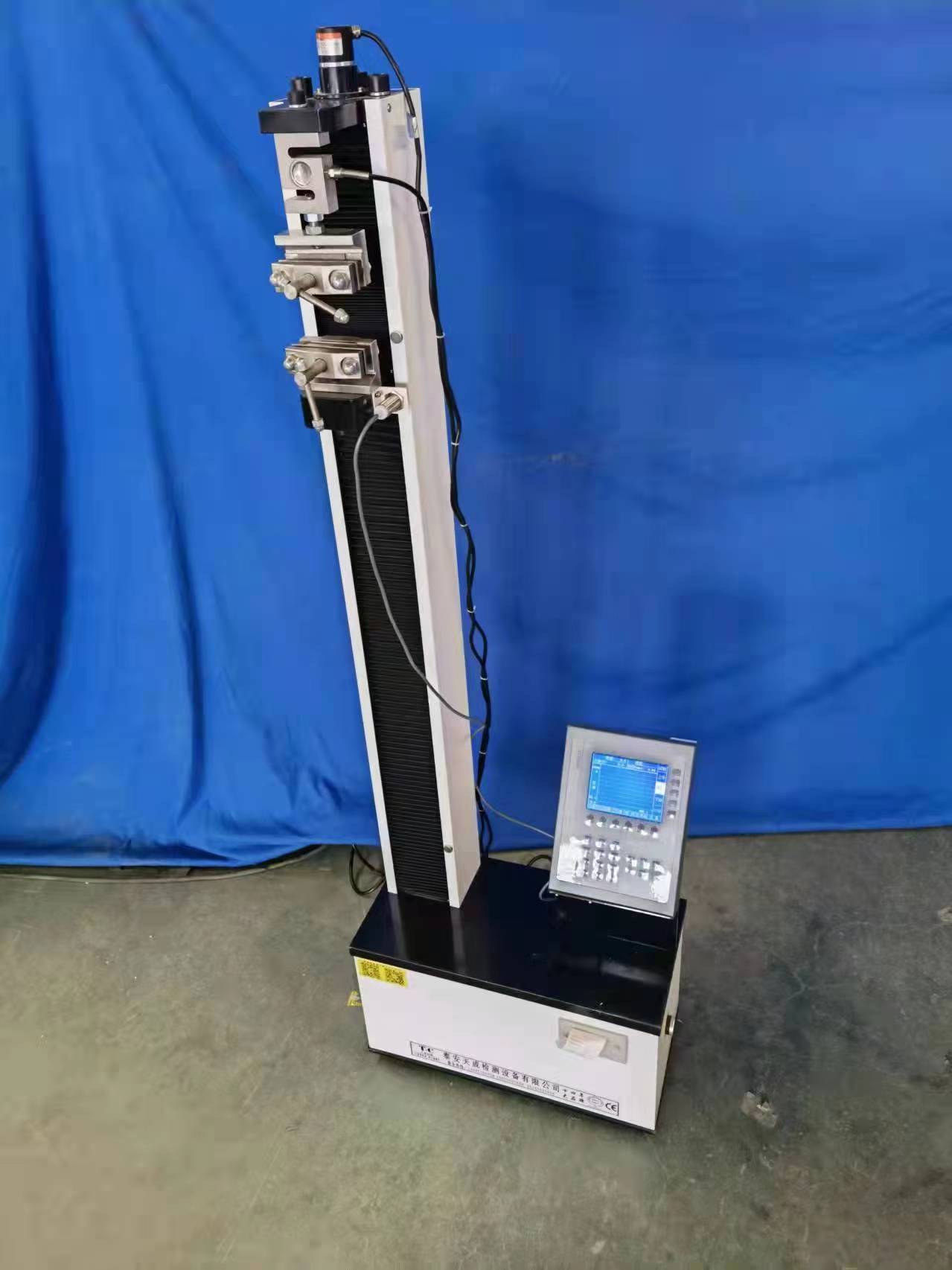

LDWThe series electronic tensile testing machine adopts mechanical loading, electronic measurement, and digital continuous speed regulation, using a microcontroller for real-time control. This machine displays test force, displacement, and speed simultaneously in digital format, and has a peak hold function for test force. It is widely used for mechanical performance testing of non-metallic and metallic materials such as rubber, plastics, textiles, petroleum asphalt paper, nets, metal wires, metal rods, and metal plates.

1. Main Technical Indicators

1,Maximum test force: 5000N;

2,Effective measurement range: 10N～5000N;

3,Test force measurement accuracy: ±1%.;

4,Force measurement range: Four automatic switching ranges;

5,Test speed:0.1mm/min～200mm/minKey speed adjustment;

6,Speed accuracy:±2%.;

7,Effective test space: 650mm.;

8,Main unit dimensions: 520×300×1400 (mm);

9,Power supply: Single-phase AC220±10%V;

10, Weight: 70kg.;

2. Structural Principle

This machine consists of several parts including a deceleration device, testing machine frame, measurement control system, and testing fixtures. The lower part of the testing machine is the base, which contains precision stepper motors and control systems. The motor drives the screw to rotate through a synchronous belt and deceleration device, with a drive nut on the screw that is fixed to the moving beam. As the screw rotates, the moving beam moves up and down, and by adjusting the motor speed, the moving speed of the beam can be changed to meet various speed requirements for testing. The force sensor is fixed on the upper beam, and the upper fixture of the sample is connected to the sensor, while the lower fixture of the sample is connected to a coupling seat fixed on the moving block. This machine is equipped with a displacement measurement sensor, during the testing process, the load sensor on the moving beam measures the magnitude of the test force, and the displacement sensor measures the amount of movement. The signals from both are filtered and amplified, and converted to the microcontroller, which collects and processes the test data and displays it, while also performing overload judgment and protection.A/DThe front panel of the digital display shows both the test force and displacement. The test speed is set by the operator according to the actual requirements of the specimen before the test begins, with speed ranges.

～0.1mm/mindivided into several levels.200mm/min3. Working Conditions of the Testing Machine:0.1(1) In the room temperature range of1(1) In the room temperature range of2(1) In the room temperature range of5(1) In the room temperature range of10(1) In the room temperature range of20(1) In the room temperature range of50(1) In the room temperature range of100(1) In the room temperature range of200mm/min℃; relative humidity not exceeding

80%.

(2) Correctly installed on a stable foundation or workbench;(3) In a non-vibrating environment;10divided into several levels.35(4) In a clean environment without corrosive media and electromagnetic interference;(5) AC power supply, with voltage fluctuations not exceeding ±10% of the rated voltage.;

(6) Power frequency 50HZ..

（3）在无震动的环境中；

（4）在周围无腐蚀性介质，无电磁场干扰的清洁环境中；

（5）220V交流电源，其电源波动值不超过额定电压的±10%;

（6）电源频率50HZ。
