Cantilever beam impact testing machine

The cantilever beam impact testing machine is mainly used for determining the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, fiberglass, ceramics, cast stone, and electrical insulating materials. It is an ideal testing device for departments in the chemical industry, research institutions, colleges and universities, and quality inspection. The main technical parameters of the XJJ series cantilever beam impact testing machine fully comply with the specifications of IS0180, GB/T 1843, GB/T 2611, and JB/T 8761 standards.

Category:

Product Center

Inquiry

Keywords:

Product Center

Detailed Description

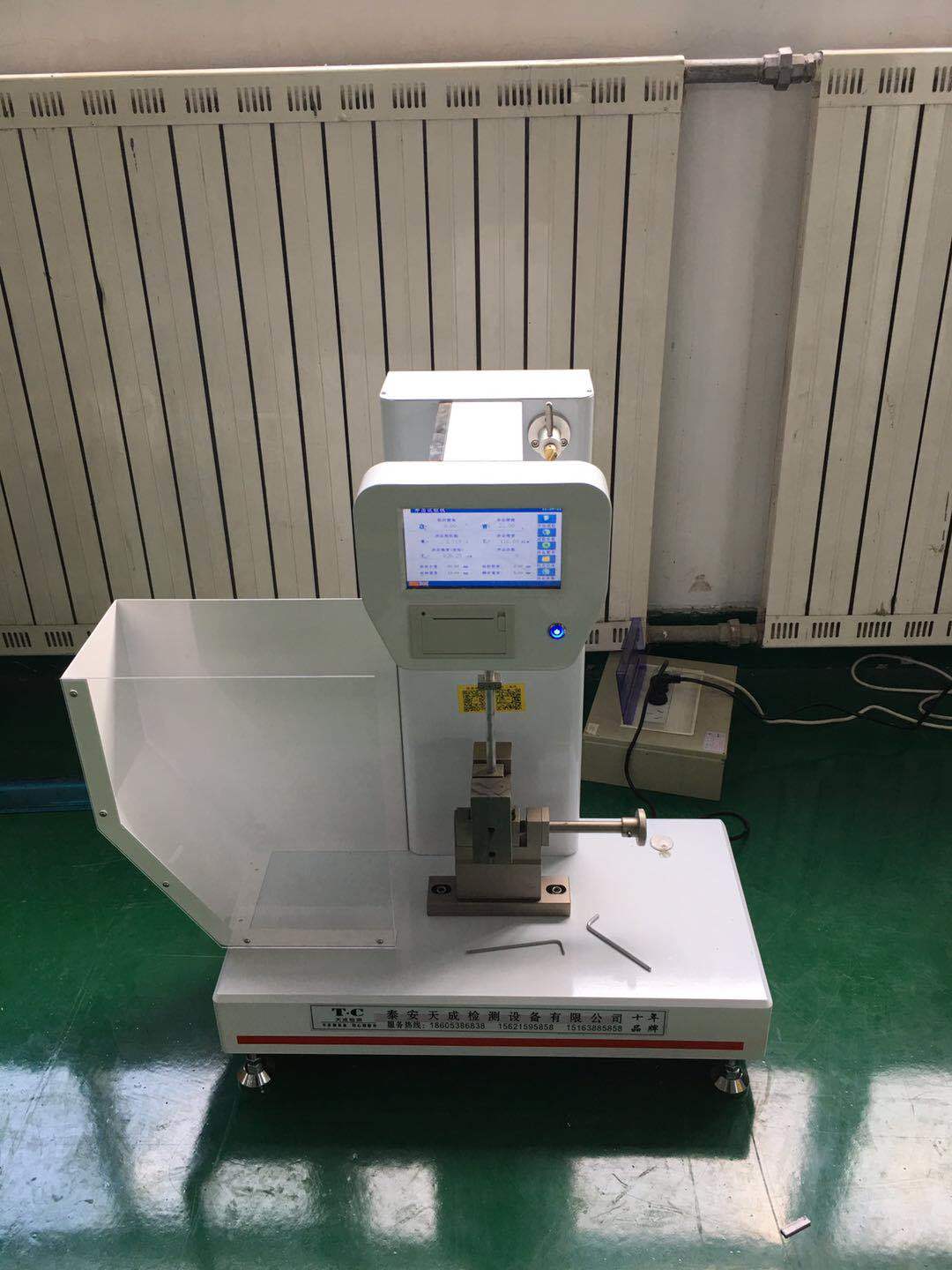

The touchscreen cantilever beam impact testing machine is mainly used for determining the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, fiberglass, ceramics, cast stone, and electrical insulation materials. It is an ideal testing device for departments in the chemical industry, research institutions, colleges and universities, and quality inspection.XJJThe main technical parameters of the series cantilever beam impact testing machine fully comply with IS0180, GB/T 1843, GB/T 2611, JB/T 8761 standards.

1. Features: This machine adopts bilingual (Chinese and English) display, touchscreen operation, and PLCmodule control. It can store data for 5 samples and calculate the average impact strength, and it can print test reports in both Chinese and English. The operation is simple, and the performance is stable. This machine is currently one of the best choices to replace imported instruments in the country.

The energy can be selected when ordering this machine, with cantilever beam impact energies of 1J, 2.75J, 5.5J, 11J, and 22J for any impact pendulum.

1Main technical indicators

	XJJ-5.5Series	XJJ-22Series
Impact speed	3.5 m/s
Pendulum energy	1J, 2.75J, 5.5J	11J, 22J
Distance from impact center	322mm
Pendulum swing angle	160°
Blade edge radius	R=0.8±0.2mm
Distance from blade edge to the top of the jaws	22±0.2mm
Impact blade angle	75°
Pendulum free impact energy loss	1J: 2%.; 2.75J, 5.5J: 1%.		0.5%.

2, Operating temperature: 15℃-35℃

3,Instrument dimensions: 550mm×350mm×850mm

4, Power supply: AC220V, 50Hz

5,Instrument net weight: 85kg

2. Performance:

This machine has angle measurement and zeroing functions; energy loss measurement and automatic compensation functions; automatic calculation of

impact strength, standard deviation, and other functions, and can print test reports in both Chinese and English, with high measurement accuracy and fast testing speed.
